Band controls

> Each of the eight bands has the same set of static controls — frequency, gain, Q, filter type, slope, on/off, and routing. Everything else (dynamics and the per-band character stages) layers on top

Diese Seite wird derzeit auf Englisch angezeigt. Die deutsche Übersetzung folgt in Kürze.

Each of the eight bands has the same set of static controls — frequency, gain, Q, filter type, slope, on/off, and routing. Everything else (dynamics and the per-band character stages) layers on top of these.

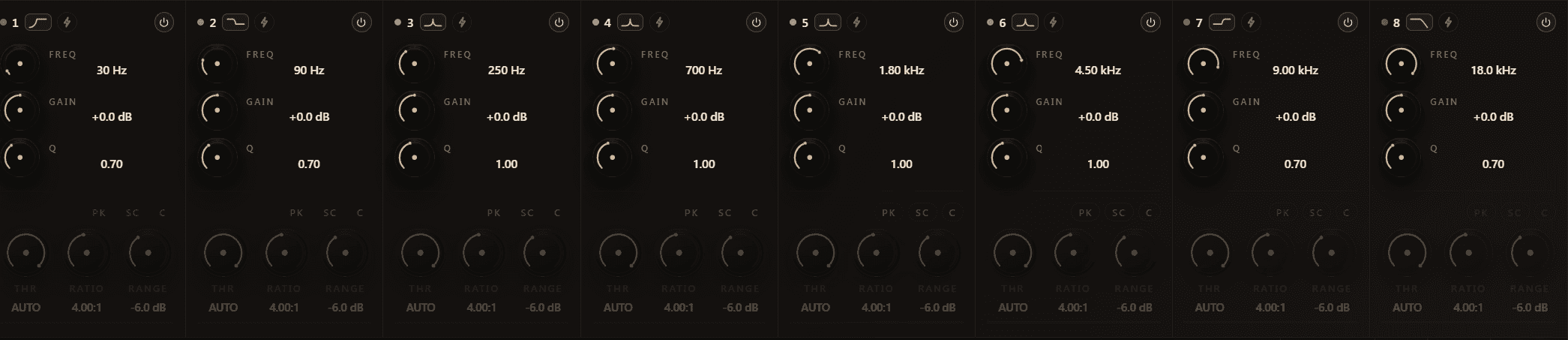

Band disc controls

Controls

Frequency

20 Hz to 20 kHz, log-scaled. Drag the band disc horizontally, scroll the freq readout in the disc tooltip, or type a value into the readout.

Gain

−24 dB to +24 dB. Drag the band disc vertically. Resets to 0 dB on double-click.

Q

0.1 to 20. Scroll on the band disc. Lower Q is wider, higher Q is narrower. A Q of about 0.707 gives a maximally-flat shelving response; for surgical work most users sit between 4 and 12.

Filter type

18 shapes — from LowCut/Peak/HighCut to specialty types like Sword and FlatTop. Right-click the band disc to pick. See Filter types for the full list with descriptions.

Per-band, in dB/oct: 6 / 12 / 18 / 24 / 36 / 48 / 72 / 96 (plus 0 = unity bypass). Right-click the band disc → Slope. Applies to every cascading type — Cuts, Shelves, Peak, Notch, TiltShelf, BandPass, AllPassLow/High. See Filter slopes.

On / Off

Toggles the band. Turning a band off bypasses just that band's contribution to the curve and to the dynamic / character chain.

M / S routing

Stereo / Mid / Side. Each band runs on exactly one of the three buses. See Stereo and M/S.

Channel mask

On surround and Atmos layouts, the 16-bit channel mask gates the band per channel. Default is all-channels-on. See Surround and Dolby Atmos.

Solo

Double-click the band disc, or right-click → Solo. See Solo for the two listening modes.

Tips

A band that is "off" still keeps its parameters — flipping it on later restores the exact previous setting. Use this for A/B-ing a single band quickly.
Q higher than about 12 starts to ring audibly on transient material; if you need a narrower notch, pick the Notch filter type (which cascades narrow notches) rather than pushing Q on a Peak band.
The band number on the disc is just a label — bands have no priority or order in the signal chain. They all see the same input and contribute additively to the curve.
